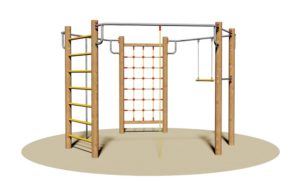

Play Structure Sissy
n°1 climbing net; n°2 poles; n°1 set climbing bars; n°2 horizontal bars; n°1 trapeze.
Request Quote
- Description
- Map
- Technical features
- Request Info
Play structure garden play equipment Sissy.
Certified according to European Standard EN 1176 by the German TÜV - SÜD.
Structure made of wood laminated pine timber autoclave with non-toxic salts.
Components: N° 1 climbing nylon rope net with steel wire armoured core clamped between a structure of posts, section Ø 120 mm and lamellarcross-beams, section cm 7x7. The armed rope net is connected to the structure through coloured nylon junctions;No. 2 horizontal stainless steel tubular bars, section Ø 40 mm; No. 1 trapeze in Iroko wood supported by two hot dipped galvanized small mesh chains, anchored to an horizontal tubular galvanized stainless steel bar, section Ø 40 mm; N° 1 Swedish ladder with posts section Ø 120 mm and parallel bars in Iroko Ø 45 mm;N° 1 vertical sliding pole in tubular stainless steel anchored to an horizontal tubular stainless steel bar, section Ø 40 mm each ; N°1 climbing nylon rope in coloured nylon with steel wire armoured core clamped to an horizontal tubular stainless steel bar, section Ø 40 mm.Assembly system with 8.8 galvanized steel bolts and self- locking nuts. Coloured nylon cap nuts as required by law. Hot-dip galvanised metal brackets for ground anchoring system in a concrete plinth.
Certified according to European Standard EN 1176 by the German TÜV - SÜD.
Structure made of wood laminated pine timber autoclave with non-toxic salts.
Components: N° 1 climbing nylon rope net with steel wire armoured core clamped between a structure of posts, section Ø 120 mm and lamellarcross-beams, section cm 7x7. The armed rope net is connected to the structure through coloured nylon junctions;No. 2 horizontal stainless steel tubular bars, section Ø 40 mm; No. 1 trapeze in Iroko wood supported by two hot dipped galvanized small mesh chains, anchored to an horizontal tubular galvanized stainless steel bar, section Ø 40 mm; N° 1 Swedish ladder with posts section Ø 120 mm and parallel bars in Iroko Ø 45 mm;N° 1 vertical sliding pole in tubular stainless steel anchored to an horizontal tubular stainless steel bar, section Ø 40 mm each ; N°1 climbing nylon rope in coloured nylon with steel wire armoured core clamped to an horizontal tubular stainless steel bar, section Ø 40 mm.Assembly system with 8.8 galvanized steel bolts and self- locking nuts. Coloured nylon cap nuts as required by law. Hot-dip galvanised metal brackets for ground anchoring system in a concrete plinth.
Overall Dimensions Max: cm 375x335x245h
Fall Height: cm 230
Age: 3-12 years
Assembly Time: 2 h
Number of users: 8
Minimum Space: cm 750x850h
Impact Area: m² 50,00
