Agadir Village
n°1 small tower whit roof; n°1 small tower; n°1 horizontal climbing structure ; n°1 access stair; n°1 sliding pole ; n°1 Tic Tac Toe game activity panel; n° 1 slide; n°1 small bench.
Inclusive Product Request Quote
- Description
- Map
- Technical features
- Request Info

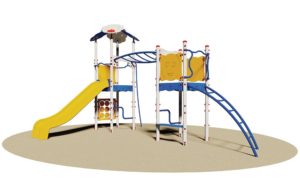

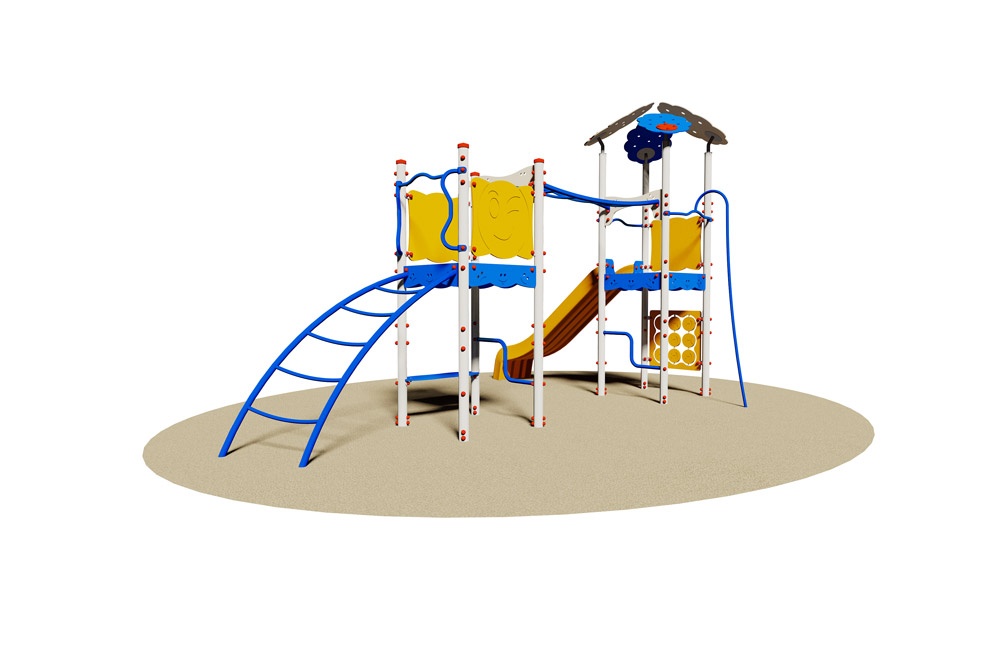

Metal play equipment Agadir Village.
Certified according to European Standard EN 1176 by the German TÜV - SÜD.
Structure made of painted electro galvanized steel and colored polyethylene high-density pantographed panels (PEHD) without sharp edges.
Components: N°1 turret with steel poles with circular section Ø 8,9 cm, platform in steel chequer plate 20/10 with non-slip knurled surface, decorative roof made with polyethylene panels assembled to poles by tubular steel fixings, protective polyethylene panels. Dim. cm 100x100x355h; N°1 turret with steel poles with circular section Ø 8,9 cm, platform in steel chequer plate 20/10 with non-slip knurled surface, protective panels and small bench in polyethylene. Dim. cm 100x100x248h; N°1 horizontal climbing structure made of steel round tube Ø 5 cm, connected to towers through polyethylene panels; N°1 curved climbing structure made of steel round tube Ø 5 cm; No. 1 sliding pole in galvanized steel painted at 180°; N°1 slide H cm 150 in rotomolded colored high-density polyethylene, connected to the structure through polyethylene panels; N°1 Tic Tac Toe game activity polyethylene panel; Assembly system with 8.8 galvanized steel bolts and self-locking nuts. Colored nylon cap nuts as required by law. Polyethylene pole caps. Baked finishing at 180°C. Hot-dip galvanised metal brackets for ground anchoring system in a concrete plinth.
Certified according to European Standard EN 1176 by the German TÜV - SÜD.
Structure made of painted electro galvanized steel and colored polyethylene high-density pantographed panels (PEHD) without sharp edges.
Components: N°1 turret with steel poles with circular section Ø 8,9 cm, platform in steel chequer plate 20/10 with non-slip knurled surface, decorative roof made with polyethylene panels assembled to poles by tubular steel fixings, protective polyethylene panels. Dim. cm 100x100x355h; N°1 turret with steel poles with circular section Ø 8,9 cm, platform in steel chequer plate 20/10 with non-slip knurled surface, protective panels and small bench in polyethylene. Dim. cm 100x100x248h; N°1 horizontal climbing structure made of steel round tube Ø 5 cm, connected to towers through polyethylene panels; N°1 curved climbing structure made of steel round tube Ø 5 cm; No. 1 sliding pole in galvanized steel painted at 180°; N°1 slide H cm 150 in rotomolded colored high-density polyethylene, connected to the structure through polyethylene panels; N°1 Tic Tac Toe game activity polyethylene panel; Assembly system with 8.8 galvanized steel bolts and self-locking nuts. Colored nylon cap nuts as required by law. Polyethylene pole caps. Baked finishing at 180°C. Hot-dip galvanised metal brackets for ground anchoring system in a concrete plinth.
Overall Dimensions Max: cm 590x390x355h
Fall Height: cm 220
Age: 5-12 years
Assembly Time: 5 h
Number of users: 13
Minimum Space: cm 900x725
Impact Area: m2 52,00
