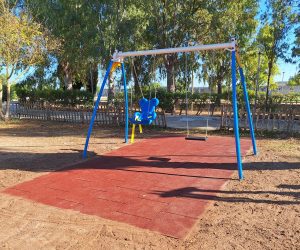

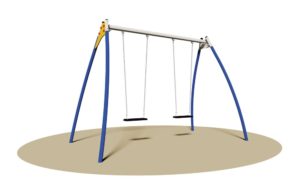

Garden Swing, 2 Seats. Certified according to European Standard EN 1176 by the German TÜV - SÜD.
Round tubular structure in painted electro galvanized steel and baked finishing at 180°C, composed by an horizontal beam Ø 8,9 cm and n° 4 oblique shaped poles Ø 6 cm connected to the beam through appropriate welded joints. N° 2 flat or cradle seats, made in impact-resistant rubber with aluminium core and available with hot dipped galvanized small mesh chains. Alternatively, two polyethylene seats appropriate for physically challenged children can be installed. Assembly system with 8.8 galvanized steel bolts and self-locking nuts. Colored nylon cap nuts as required by law.
Round tubular structure in painted electro galvanized steel and baked finishing at 180°C, composed by an horizontal beam Ø 8,9 cm and n° 4 oblique shaped poles Ø 6 cm connected to the beam through appropriate welded joints. N° 2 flat or cradle seats, made in impact-resistant rubber with aluminium core and available with hot dipped galvanized small mesh chains. Alternatively, two polyethylene seats appropriate for physically challenged children can be installed. Assembly system with 8.8 galvanized steel bolts and self-locking nuts. Colored nylon cap nuts as required by law.
Overall Dimensions Max: cm 335x180x230h
Fall Height: cm 135
Age: 3-12 years
Assembly Time: 2 h
Number of users: 2
Minimum Space: cm 650x640h
Impact Area: m² 20,00
